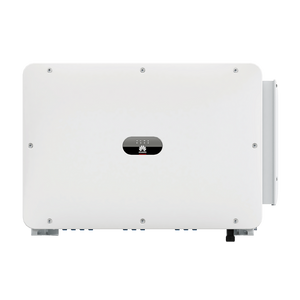

Huawei 100KW Smart PCS
Technical Specifications
Efficiency
|
Max. Efficiency |
98.4% |
DC Side
|
Rated DC Voltage |
645 V |
|
Max. DC Voltage |
1,100 V |
|
Operating DC Voltage Range |
570 V ~ 1100 V |
|
Max. DC Current |
215.8 A |
|
Max. Number of Inputs |
1 |
AC Side
|
Rated AC Active Power |
100,000 W @40°C |
|
Rated AC Voltage |
380 Vac / 400 Vac / 440 Vac |
|
Rated AC Grid Frequency |
50 Hz / 60 Hz |
|
Max. AC Current |
173.2 A |
|
Adjustable Power Factor Range |
-1 ... +1 |
|
Max. Total Harmonic Distortion |
＜3% |
Protection
|
Anti-islanding Protection |
Yes |
|
AC Overcurrent Protection |
Yes |
|
DC Reverse-polarity Protection |
Yes |
|
Insulation Resistance Detection |
Yes |
|
Residual Current Protection |
Yes |
|
DC Surge Protection |
Type II |
|
AC Surge Protection |
Type II |
Communication
|
Display |
LED Indicators, WLAN + APP |
|
Networking Mode |
Ethernet， CAN |
General
|
Dimensions (W x H x D) |
875 x 820 x 365 mm |
|
Weight |
< 95 kg |
|
Operating Temperature Range |
-25°C ~ 60°C ( Derating above 40°C ) |
|
Cooling Method |
Smart Air Cooling |
|
Max. Operating Altitude without Derating |
4,000 m |
|
Relative Humidity |
0 ~ 100% |
|
DC Connector |
OT/DT Terminal |
|
AC Connector |
OT/DT Terminal |
|
Protection Degree |
IP66 |
|
Topology |
Transformerless |
- single or three-phase:
- three-phase
- Frequency:
- 50
- Voltage:
- 400
