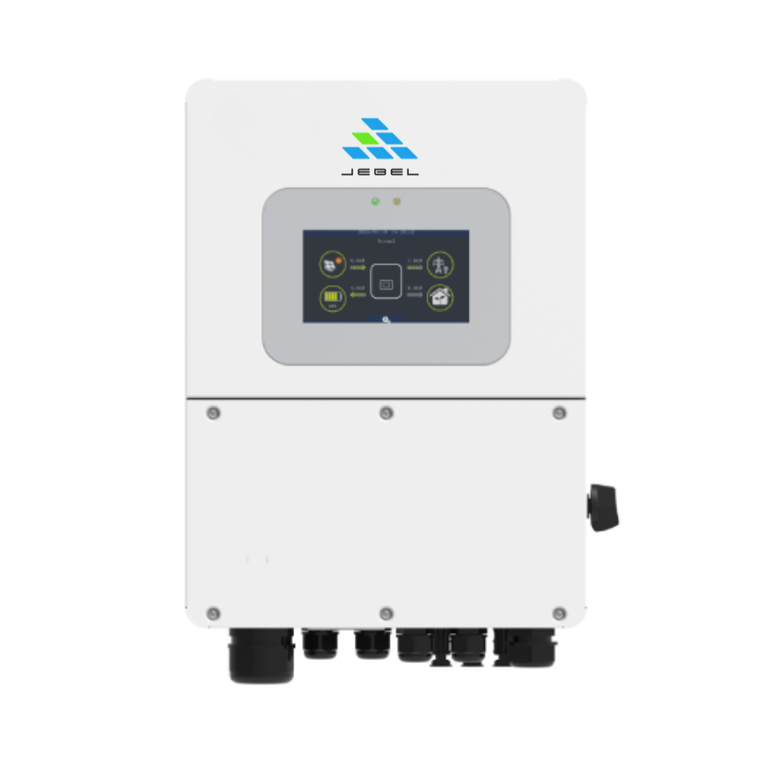

Jebel 8kW Single Phase LV Hybrid Inverter
Jebel JBL-HYB-8K-1PL2 series, also called single phase low-voltage hybrid solar inverters, apply to solar system with participation of PV, battery, loads and grid system for energy management. The energy produced by PV system shall be used to optimize self-consumption, excess power charge battery and the rest power could be exported to the grid. Battery shall discharge to support loads when PV power is insufficient to meet self-consumption. If battery power is not sufficient, the system will take power from grid to support loads.
Key Features
-
IP66 Waterproof, for Indoor & Outdoor Use.
-
On-grid + Energy storage + Off-grid.
-
Support the diesel generator and the grid access at the same time.
-
Up to 7 Intelligent Working Modes.
-
Support for lead-acid, lithium batteries, but also to specify the brand of battery adaptation communication.
- 5-year standard warranty and 10-year extended warranty.
-
Color Touch Screen.
Technical Specifications
|
Models |
8K |
|
Input DC (PV side) |
|
|
Max. PV access power |
16kW |
|
Max. PV input power |
12.8kW |
|
Max. PV input voltage |
600 V |
|
Nominal input voltage |
360 V |
|
MPP T working voltage range |
80V-500V |
|
Number of independent MPPT/ strings per MPPT |
4/1 |
|
MPPT max. current |
4*20A |
|
Start-up voltage |
100V |
|
Output/Input AC (Grid side) |
|
|
Nominal apparent power |
8K |
|
Max. apparent power |
8.8kVA |
|
Nominal voltage |
220V/230V |
|
Nominal frequency |
50Hz/60Hz |
|
Rated current |
36.4A/34.7A |
|
Max. current |
40A |
|
Power factor |
-0.8~+0.8 (adjustable) |
|
THDi |
<3%(Nominal Output) |
|
Grid system pattern |
L+N+PE |
|
Max. AC current from utility grid |
100A |
|
Output AC (Back-up) |
|
|
Nominal output power |
8K |
|
Max. output apparent power |
8.8kVA |
|
Nominal output voltage |
220V/230V |
|
Nominal output frequency |
50Hz/60Hz |
|
Output THDV |
<3% |
|
Automatic switch time |
<10ms |
|
Battery |
|
|
Battery type |
Li-ion/Lead-acid |
|
Battery voltage range |
40V~60V |
|
Max. charging/discharging current |
190A |
|
Charging strategy for Li-ion battery |
Self-adaption to BMS |
|
Charging strategy for Lead-acid battery |
Three-stage |
|
Efficiency |
|
|
Max. MPPT efficiency |
99.9% |
|
Europe efficiency |
97.5% |
|
Max. battery to load efficiency |
94.5% |
|
Protection |
|
|
Anti-islanding protection |
Yes |
|
Insulation impedance protection |
Yes |
|
RCD detection |
Yes |
|
PV reverse polarity protection |
Yes |
|
Output over voltage protection |
Yes |
|
Output over current protection |
Yes |
|
General Data |
|
|
Dimensions(L/W/H)in mm |
425/290/660 |
|
Weight |
39kg |
|
Operation temperature range |
-25℃~60 ℃ |
|
Heat dissipation mode |
Smart Cooling |
|
IP Class |
IP 65 |
|
Maximum altitude |
4000m |
|
Self-Consumption night |
<3W |
|
Topology |
Transformerless |
|
Features |
|
|
LCD display |
Yes |
|
Communication interface |
WiFi/4G/USB/CAN/RS485 |
|
Standards |
EN 62109/EN 62477/EN IEC 61000/CEI 0-21/NTS-631/RD647/UNE 217001/ UNE 217002/VDE 4105/IEC 61727/IEC 62116/IEC 61683/EN 50549/G98/ G99/NRS 097/UTE C 15/VDE V 0126 |
- single or three-phase:
- single-phase
- Frequency:
- 50
- Voltage:
- 220
- Battery Voltage:
- 48
