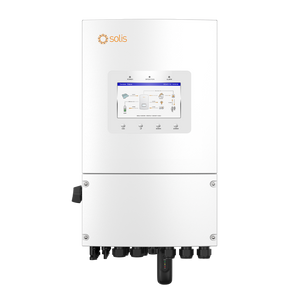

Solis 6KW Single Phase Hybrid LV Inverter Pro

Solis 6KW Single Phase Hybrid LV Inverter Pro

Solis
SKU:
S6-EH1P6K-L-PRO
Availability:
In Stock

Log in for pricing

Weight:
26.00 KGS
Width:
52.00 (cm)
Height:
68.00 (cm)
Depth:
30.00 (cm)
Current Stock:
Minimum Purchase:
1 unit
Description

Download Datasheet

DOWNLOAD DATASHEET

Solis S6 Advanced Power Hybrid Inverter

Features:

  • Generator connectivity with multiple input methods and automatic generator On/Off control
  • Automatic UPS switching
  • 10 second 200% surge power backup overload capability
  • Supports 1ph and 3ph flexible connection with max 36kW in parallel
  • Up to 135A max charge/discharge current
  • 6 customisable charge/discharge time settings
  • Compatible with lead-acid and lithium batteries, with multiple battery protection features
  • Supports peak shaving control in both "self-use" and "generator" mode

Datasheet:

Models

3K

3.6K

5K

6K

Input DC (PV side)

Recommended max. PV power

4.8 kW

5.76 kW

8 kW

9.6 kW

Max. input voltage

600 V

Rated voltage

330 V

Start-up voltage

90 V

MPPT voltage range

90-520 V

Max. input current

16 A / 16 A

Max. short circuit current

24 A / 24 A

MPPT number/Max. input strings number

2/2

Battery

Battery type

Li-ion / Lead-acid

Battery voltage range

40-60 V

Max. charge / discharge power

3 kW

3.6 kW

5 kW

6 kW

Max. charge / discharge current

70 A

80 A

112 A

135 A

Communication

CAN/RS485

Output AC (Grid side)

Rated output power

3 kW

3.6 kW

5 kW

6 kW
Max. apparent output power

3.3 kVA

4 kVA

5.5 kVA

6.6 kVA

Operation phase

1/N/PE

Rated grid voltage

220 V / 230 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

13.6 A / 13.0 A

16.4 A / 15.7 A

22.7 A / 21.7 A

27.3 A / 26.1 A

Max. output current

15 A

20 A

25 A

30 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<2%

Input AC (Grid side)

Input voltage range

187 - 253 V

Max. input current

20 A

25 A

32 A

40 A

Frequency Range

45-55 Hz / 55-65 Hz

Output AC (Back-up)

Rated output power

3 kW

3.6 kW

5 kW

6 kW

Max. apparent output power

2 times of rated power, 10 s
Back-up switch time

<4 ms

Rated output voltage

1/N/PE, 220 V / 230 V

Rated frequency

50 Hz / 60 Hz

Rated output current

13.6 A / 13.0 A

16.4 A / 15.7 A

22.7 A / 21.7 A

27.3 A / 26.1 A

Max. output current

20 A

25 A

32 A

40 A

Max. AC Passthrough current

35 A

35 A

40 A

40 A

THDv (@linear load)

<2%

Efficiency

Max. efficiency

> 97.5%

EU efficiency

> 96.2%

Protection

DC reverse-polarity protection

Yes

Ground Fault Monitoring

Yes

Integrated AFCI (DC arc-fault circuit protection)

Yes (1)

Protection class/Over voltage category

I/II

General Data

Dimensions (W*H*D)

406*560*205 mm

Weight

24 kg

Topology

High frequency isolation (for battery)

Operating ambient temperature range

-40 ~ +60°C

Ingress protection

IP66







Warranty
5 Years
Additional Information
single or three-phase:
single-phase
Frequency:
50
Voltage:
220
Battery Voltage:
48
