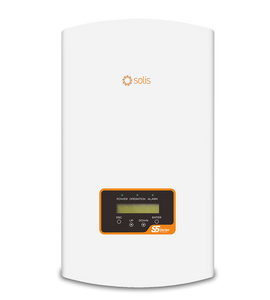

Solis 4KW Single Phase String Inverter
Solis 4KWSinglephaseDualMPPT,withDCSwitch
Features:
- Max. efficiency 97.7%
- String current up to 14A
- Super high frequency switching technology
- Wide voltage range and low startup voltage
- 2 MPPT design with precise MPPT algorithm
- Intergrated Export Power Manager (EPM)
- AFCI protection, proactively reduces fire risk
- Compact and lightweight
- Friendly and adaptable connection to the grid
Datasheet:
|
Model |
2.5K |
3K |
3.6K |
4K |
4.6K |
5K |
6K |
Input DC
|
Recommended max. PV power |
3.75 kW | 4.5 kW | 5.4 kW | 6 kW | 6.9 kW | 7.5 kW | 9 kW |
|
Max. input voltage |
550 V |
600 V |
|||||
|
Rated voltage |
250 V |
330 V |
|||||
|
Start-up voltage |
60 V |
120 V |
|||||
|
MPPT voltage range |
50-450 V |
90-520 V |
|||||
|
Max. input current |
14 A / 14 A |
||||||
|
Max. short circuit current |
22 A / 22 A |
||||||
|
MPPT number/Max. input strings number |
2/2 |
||||||
|
Output AC |
|
||||||
|
Rated output power |
2.5 kW |
3 kW |
3.6 kW |
4 kW |
4.6 kW |
5 kW |
6 kW |
|
Max. apparent output power |
2.8 kVA |
3.3 kVA |
4 kVA |
4.4 kVA |
5 kVA |
5 kVA |
6 kVA |
|
Max. output power |
2.8 kW |
3.3 kW |
4 kW |
4.4 kW |
5 kW |
5 kW |
6 kW |
|
Rated grid voltage |
|
|
|
1/N/PE, 220 V / 230 V |
|
|
|
|
Rated grid frequency |
|
|
|
50 Hz / 60 Hz |
|
|
|
|
Rated grid output current |
11.4 A / 10.9 A |
13.6 A / 13.0 A |
16.0 A / 15.7 A |
18.2 A / 17.4 A |
20.9 A / 20.0 A |
22.7 A / 21.7 A |
27.3 A |
|
Max. output current |
13.3 A |
15.7 A |
16.0 A |
21.0 A |
23.8 A |
25.0 A |
27.3 A |
|
Power factor |
>0.99 (0.8 leading - 0.8 lagging) | ||||||
|
THDi |
<3% | ||||||
|
Efficiency |
|
|||
|
Max. efficiency |
97.3% |
97.3% |
97.6% |
97.7% |
|
EU efficiency |
96.5% |
96.6% |
97.1% |
97.1% |
|
Protection |
|
|
|
|
|
DC reverse-polarity protection |
Yes |
|
Short circuit protection |
Yes |
|
Output over current protection |
Yes |
|
Surge protection |
Yes |
|
Grid monitoring |
Yes |
|
Anti-islanding protection |
Yes |
|
Temperature protection |
Yes |
|
Integrated AFCI (DC arc-fault circuit protection) |
Yes (1) |
|
Integrated DC switch |
Optional |
|
General Data |
|
|
Dimensions (W*H*D) |
310*543*160 mm |
||||||
|
Weight |
11 kg |
11.2 kg |
12 kg |
||||
|
Topology |
Transformerless |
||||||
|
Self-consumption (night) |
<1 W | ||||||
|
Operating ambient temperature range |
-25 ~ +60°C |
||||||
|
Relative humidity |
0-100% |
||||||
|
Ingress protection |
IP66 |
||||||
|
Cooling concept |
Natural convection |
||||||
|
Max. operation altitude |
4000 m |
||||||
|
Grid connection standard |
G98(2) or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
||||||
|
Safety/EMC standard |
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3 |
||||||
|
Features |
|
|
|
|
|
|
|
|
DC connection |
MC4 connector |
||||||
|
AC connection |
Quick connection plug |
||||||
|
Display |
LCD |
||||||
|
Communication |
RS485, Optional: Wi-Fi, GPRS |
||||||
Input DC
5 Years
- single or three-phase:
- single-phase
- Frequency:
- 50
- Voltage:
- 220
