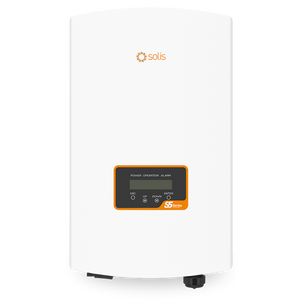

Solis 8KW Three Phase String Inverter

Solis 8KW Three Phase String Inverter

Solis
SKU:
S5-GR3P8K
Availability:
4-6 weeks

Log in for pricing

Weight:
19.40 KGS
Width:
37.60 (cm)
Height:
60.50 (cm)
Depth:
22.90 (cm)
Current Stock:
Minimum Purchase:
10 units
Description

Download Datasheet

DOWNLOAD DATASHEET

Solis 8KWthreephaseDualMPPT,withDCSwitch

Features:

• Efficient
     - Max. efficiency 98.7%
     - String current up to 16A
     - Wide voltage range and low startup voltage
• Smart
     - Supports export power control
     - Supports RS485, WiFi, GPRS
     - Scan to register on SolisCloud, supports remote upgrade and control
• Safe
     - IP66
     - AFCI protection, proactively reduces fire risk
     - Automatic voltage stabilization technology in weak grid conditions
• Economic
     - Compact design, simple installation and maintenance
     - > 150% DC/AC ratio
     - Supports high power modules for lower installation costs

Datasheet:

Models

3K

4K

5K

6K

8K

9K

10K

12K

13K

15K

17K

20K

Input DC

Recommended max. PV power

4.5 kW

6 kW

7.5 kW

9 kW

12 kW

13.5 kW

15 kW

18 kW

19.5 kW

22.5 kW

25.5 kW

30 kW

Max. input voltage

1100 V

Rated voltage

600 V

Start-up voltage

180 V

MPPT voltage range

160-1000 V

Max. input current

16 A / 16 A

32 A / 32 A

Max. short circuit current

20 A / 20 A

40 A / 40 A

MPPT number/Max. input strings number

2/2

2/4

Output AC

Rated output power

3 kW

4 kW

5 kW

6 kW

8 kW

9 kW

10 kW

12 kW

13 kW

15 kW

17 kW

20 kW

Max. apparent output power

3.3 kVA

4.4 kVA

5.5 kVA

6.6 kVA

8.8 kVA

9.9 kVA

11 kVA

13.2 kVA

14.3 kVA

16.5 kVA

18.7 kVA

22 kVA

Max. output power

3.3 kW

4.4 kW

5.5 kW

6.6 kW

8.8 kW

9.9 kW

11 kW

13.2 kW

14.3 kW

16.5 kW

18.7 kW

22 kW

Rated grid voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

4.6 A /

4.3 A

6.1 A /

5.8 A

7.6 A /

7.2 A

9.1 A /

8.7 A

12.2 A /

11.5 A

13.7 A /

13.0 A

15.2 A /

14.4 A

18.2 A /

17.3 A

19.8 A /

18.8 A

22.8 A /

21.7 A

25.8 A /

24.6 A

30.4 A /

28.9 A

Max. output current

4.7 A

6.4 A

7.9 A

9.5 A

12.7 A

14.3 A

15.9 A

19.1 A

20.7 A

23.8 A

27 A

31.8 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<2%

Efficiency

Max. efficiency

98.3%

98.5%

98.6%

98.7%

EU efficiency

97.7%

97.9%

98.0%

98.1%

Protection

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Output over current protection

Yes

Surge protection

Yes

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

Integrated AFCI (DC arc-fault circuit protection)

Yes (1)

Integrated DC Switch

Optional

General Data

Dimensions (W*H*D)

310*563*219 mm

Weight

17.8 kg

18.8 kg

20 kg

Topology

Transformerless

Self-consumption (night)

<1 W

Operating ambient temperature range

-25 ~ +60°C

Relative humidity

0-100%

Ingress protection

IP66

Cooling concept

Natural convection

Intelligent redundant fan-cooling

Max. operation altitude

4000 m
Safety/EMS standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Features

DC connection

MC4 connector

AC connection

Quick connection plug

Display

LCD

Communication


Warranty
5 Years
Additional Information
single or three-phase:
three-phase
Frequency:
50
Voltage:
380
