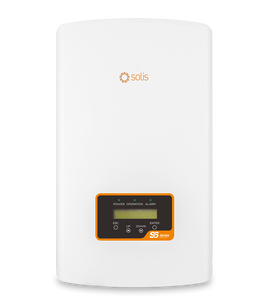

Solis 9KW Single Phase String Inverter

Solis
SKU:
S5-GR1P9K
Availability:
4-6 weeks

Log in for pricing

Weight:
20.00 KGS
Width:
38.00 (cm)
Height:
64.00 (cm)
Depth:
30.00 (cm)
Current Stock:
Minimum Purchase:
10 units

Download Datasheet

DOWNLOAD DATASHEET

Solis 9KWsinglephasethreeMPPT,withDCSwitch

Features:

  • Max.efficiency 98.0%
  • Max.input current 14A
  • 3 MPPT design with precise MPPT algorithm
  • AFCI protection, proactively reduces fire risk
  • Compact and lightweight
  • Wide voltage range and low startup voltage
  • Friendly and adaptable connection to the grid

Datasheet:

Models

7K

8K

9K

10K

Input DC

Recommended max. PV power

10.5 kW

12 kW

13.5 kW

15 kW

Max. input voltage

600 V

Rated voltage

330 V

Start-up voltage

120 V

MPPT voltage range

100-500 V

Max. input current

14 A / 14 A / 14 A

Max. short circuit current

22 A / 22 A / 22 A

MPPT number/Max. input strings number

3 / 3

Output AC

Rated output power

7 kW

8 kW

9 kW

10 kW

Max. apparent output power

7.7 kVA

8.8 kVA

9.9 kVA

10 kVA

Max. output power

7.7 kW

8.8 kW

9.9 kW

10 kW

Rated grid voltage

1/N/PE, 220 V / 230 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

31.8 A / 30.4 A

36.4 A / 34.8 A

40.9 A / 39.1 A

45.5 A / 43.5 A

Max. output current

33.7 A

36.6 A

41.3 A

45.9 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Efficiency

Max. efficiency

98.0%

EU efficiency

97.1%

Protection

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Output over current protection

Yes

Surge protection

Yes

Grid Monitoring

Yes

Anti-islanding protection

Yes

Temperature Protection

Yes

Integrated AFCI (DC arc-fault circuit protection)

Yes (1)

Integrated DC switch

Optional

General Data

Dimensions (W*H*D)

333*579*253 mm

Weight

18.5 kg

Topology

Transformerless

Self-consumption (night)

<1 W

Operating ambient temperature range

-25 ~ +60°C

Relative Humidity

0-100%

Ingress protection

IP66

Cooling concept

Natural Convection

Max. operation altitude

4000 m

Grid connection standard

G99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Features

DC connection

MC4 connector

AC connection

OT Terminal

Display

LCD

Communication

RS485, Optional: Wi-Fi, GPRS







5 Years
single or three-phase:
single-phase
Frequency:
50
Voltage:
220
