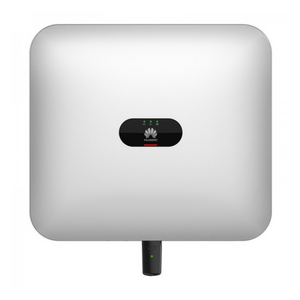

Huawei 10KW Hybrid Smart Energy Controller (High Current Version)
HuaweiContact us for pricing
Log in for pricing
The Huawei SUN2000-3-10KTL-M1 is a three-phase grid-tied string inverter that converts DC power from PV strings into AC power. This power can be fed into the grid, used to supply home appliances, or stored in LUNA ESS batteries. The M1 inverter series serves as the central component for PV-only systems, energy storage, backup power, and intelligent energy management solutions. With 2 independent MPP trackers and a total of 2 PV string inputs, the M1 is optimally equipped for complex system designs with multiple strings
Leading Features:
- Active Safety - AFCI Active Arcing Protection
- Higher Yields - Up to 30% More Energy with Optimizer
- BatteryReady - Plug & Play Battery Interface
Technical Specification:
Model |
SUN2000-3KTL-M1 |
SUN2000-4KTL-M1 |
SUN2000-5KTL-M1 |
SUN2000-6KTL-M1 |
SUN2000-8KTL-M1 |
SUN2000-10KTL-M1 |
Efficiency |
||||||
Max. Efficiency |
98.2% |
98.3% |
98.4% |
98.6% |
98.6% |
98.6% |
European weighted efficiency |
96.7% |
97.1% |
97.5% |
97.7% |
98.0% |
98.1% |
Input (PV) |
||||||
Recommended max. PV power |
4,500 Wp |
6,000 Wp |
7,500 Wp |
9,000 Wp |
12,000 Wp |
15,000 Wp |
Max. Input Voltage |
1,100 V |
|||||
Operating voltage range 3 |
140 ~ 980 V |
|||||
Startup voltage |
200 V |
|||||
Rated input voltage |
600 V |
|||||
Max. input current per MPPT |
13.5 A |
|||||
Max. short-circuit current |
19.5 A |
|||||
Number of MPP trackers |
2 |
|||||
Max. input number per MPP tracker |
1 |
|||||
Input (DC Battery) |
||||||
Compatible battery |
LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
|||||
Operating voltage range |
600 ~ 980 V |
|||||
Max. operating current |
16.7 A |
|||||
Max. charge power |
10,000 W |
|||||
Max. discharge power |
3,300 W |
4,400 W |
5,500 W |
6,600 W |
8,800 W |
10,000 W |
Output (On Grid) |
||||||
Grid connection |
Three-phase |
|||||
Rated output power |
3,000 W |
4,000 W |
5,000 W |
6,000 W |
8,000 W |
10,000 W |
Max. apparent power |
3,300 VA |
4,400 VA |
5,500 VA |
6,600 VA |
8,800 VA |
11,000 VA4 |
Rated output voltage |
220 V AC/380 V AC, 230 V AC/400 V AC, 3W/N+PE |
|||||
Rated AC grid frequency |
50 Hz/60 Hz |
|||||
Max. output current |
5.1 A |
6.8 A |
8.5 A |
10.1 A |
13.5 A |
16.9 A |
Adjustable power factor |
0.8 leading ... 0.8 lagging |
|||||
Max. total harmonic distortion |
≤ 3% |
|||||
Output (Off Grid) |
||||||
Backup Box |
BackupBox-B1 |
|||||
Max. apparent power |
3,000 VA |
3,300 VA |
3,300 VA |
3,300 VA |
3,300 VA |
3,300 VA |
Rated output voltage |
220 V/230 V |
|||||
Max. output current |
13.6 A |
15 A |
15 A |
15 A |
15 A |
15 A |
Power factor range |
0.8 leading ... 0.8 lagging |
|||||
Protection Feature |
||||||
Input-side disconnection device |
Yes |
|||||
Anti-islanding protection |
Yes |
|||||
DC reverse polarity protection |
Yes |
|||||
Insulation monitoring |
Yes |
|||||
DC surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
|||||
AC surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
|||||
Residual current monitoring unit |
Yes |
|||||
AC over current protection |
Yes |
|||||
AC short-circuit protection |
Yes |
|||||
AC over voltage protection |
Yes |
|||||
Arc fault protection |
Yes |
|||||
Ripple receiver control |
Yes |
|||||
Battery charging from grid |
Yes |
|||||
General Specification |
||||||
Operating temperature range |
–25°C to +60°C (–13°F to +140°F) |
|||||
Relative operating humidity |
0%-100% RH |
|||||
Max. operating altitude |
4,000 m (13,123 ft.) (Derating above 2000 m) |
|||||
Cooling |
Natural convection |
|||||
Display |
LED Indicators; Integrated WLAN + FusionSolar app |
|||||
Communication |
RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G/3G/2G via Smart Dongle-4G (Optional) |
|||||
Weight (incl. mounting brackets) |
17 kg (37.5 lb) |
|||||
Dimensions (incl. mounting brackets) |
525 mm x 470 mm x 146.5 mm (20.7 in. x 18.5 in. x 5.8 in.) |
|||||
IP rating |
IP65 |
|||||
Optimizer Compatibility |
||||||
DC MBUS compatible optimizer |
SUN2000-450W-P2, SUN2000-600W-P |
|||||
Standards Compliance (More Available Upon Request) |
||||||
Safety |
EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116 |
|||||
Grid connection standards |
G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA |
- single or three-phase:
- three-phase
- Frequency:
- 50
- Voltage:
- 380
