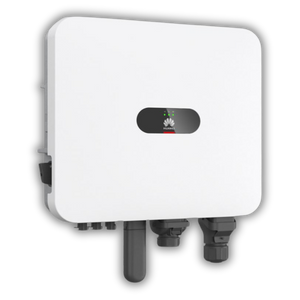

Huawei 12KW Hybrid Smart Energy Controller
Technical Specifications
|
Model |
SUN2000-5K-MAP0 |
SUN2000-6K-MAP0 |
SUN2000-8K-MAP0 |
SUN2000-10K-MAP0 |
SUN2000-12K-MAP0 |
|
Efficiency |
|||||
|
Max. Efficiency |
98.4% |
98.6% |
98.6% |
98.6% |
98.6% |
|
European weighted efficiency |
97.5% |
97.7% |
98.0% |
98.1% |
98.2% |
|
Input (PV) |
|||||
|
Recommended max. PV power |
9000 Wp |
11,000 Wp |
14,600 Wp |
18,000 Wp |
22,000 Wp |
|
Max. Input Voltage |
1100V |
||||
|
Operating voltage range |
160-1000V |
||||
|
Startup voltage |
160V |
||||
|
Rated input voltage |
600V |
||||
|
Max. input current per MPPT |
16A |
||||
|
Max. short-circuit current |
22A |
||||
|
Number of MPPT trackers |
2 |
||||
|
Max. input per MPP tracker |
1 |
||||
|
Input (DC Battery) |
|||||
|
Compatible Battery |
LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 |
||||
|
Operating voltage range |
600-980V |
||||
|
Max. Operating current |
20V |
||||
|
Max. Charging power |
12,000W |
||||
|
Max. discharging power |
5500W |
6600W |
8800W |
11,000W |
12,000W |
|
Output (On grid) |
|||||
|
Grid Connection |
Three-phasr |
||||
|
Rated output power |
5000W |
6000W |
8000W |
10,000W |
12,000W |
|
Max. apparent power |
5500 VA |
6600 VA |
8800 VA |
11,000 VA |
13,200 VA |
|
Rated output voltage |
220 V AC / 380 V AC, 230 V AC /400 V AC, 240 V AC / 415 V AC 3W/N + PE |
||||
|
Rated AC grid frequency |
50 Hz/60 Hz |
||||
|
Max. output current |
8.3A |
10.0A |
13.3A |
16.7A |
20.2A |
|
Adjustable power factor |
0.8 leading … 0.8 lagging |
||||
|
Max. total harmonic distortion |
≤3% |
||||
|
Output (Off grid) |
|||||
|
Compatible Backup Device |
SmartGuard-63A-T0 (3 Phase) |
||||
|
Rated output power |
5000W |
6000W |
8000W |
10,000W |
10,000W |
|
Rated output voltage |
220 V AC / 380 V AC, 230 V AC /400 V AC, 240 V AC / 415 V AC 3W/N + PE |
||||
|
110% overload |
Continuous |
||||
|
150% overload |
5 min (3-phase) / 5 min (Single-phase) |
1 min (3-phase) / 5 min (Single-phase) |
|||
|
200% overload |
10 seconds |
||||
|
Automatic switchover time |
≤20ms (with SmartGuard-63A-T0) |
||||
|
Protection Feature |
|||||
|
Asymmetric load |
Yes, supports 100% three-phase asymmetric load |
||||
|
Input-side disconnection device |
Yes |
||||
|
Anti-islanding protection |
Yes |
||||
|
DC reverse polarity protection |
Yes |
||||
|
Insulation detection |
Yes |
||||
|
DC Surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
||||
|
AC Surge protection |
Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 |
||||
|
Residual current detection |
Yes |
||||
|
AC overcurrent protection |
Yes |
||||
|
AC short-circuit protection |
Yes |
||||
|
AC overvoltage protection |
Yes |
||||
|
Arc fault protection |
Yes |
||||
|
Connector temperature detection |
Yes (PV & Battery connectors) |
||||
|
Ripple receiver control |
Yes |
||||
|
Battery charging from grid |
Yes |
||||
|
General Specification |
|||||
|
Operating temperature range |
-25°C to + 60°C (-13°F to + 140°F) |
||||
|
Relative operating humidity |
0% - 100% RH |
||||
|
Max. operating altitude |
4000 m |
||||
|
Cooling |
Natural Convection |
||||
|
Noise |
≤29dB |
||||
|
Display |
LED Indicators; Integrated WLAN + FusionSolar APP |
||||
|
Communication |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional) ; EMMA (Optional) |
||||
|
Weight (incl. mounting brackets) |
21kg |
||||
|
Dimensions (incl. mounting brackets) |
490 mm x 460 mm x 130 mm |
||||
|
IP Rating |
IP66 |
||||
|
Nighttime power |
<5.5W |
||||
|
Optimizer Compatibility |
|||||
|
DC MBUS compatible optimizer |
SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0 |
||||
10 years
- single or three-phase:
- three-phase
- Frequency:
- 50
- Voltage:
- 400
