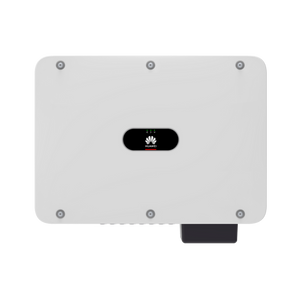

Huawei 150KW Smart PV Controller

TechnicalSpecification

SUN2000-150K-MG0

Efficiency

Max.efficiency

98.6% @400V, 98.8% @480V

European efficiency

98.4%

Input

Max.Input Voltage1

1,100 V

Max.Current per MPPT

48A

Max. Current per Input

23A

Max. Short Circuit Current per MPPT

66A

Start Voltage

200 V

MPPT Operating Voltage Range2

200 V ~ 1,000 V

Number of MPP trackers

7

Max. input number per MPP tracker

3

Output

Nominal AC Active Power

150,000 W

Max.AC Apparent Power

165,000 VA

Max.AC Active Power(cosφ=1)

165,000 W

Nominal Output Voltage

380 V/400 V/480Vac

Rated AC Grid Frequency

50 Hz / 60 Hz

Nominal Output Current

227.9 A @380 V, 216.5A @400 V, 180.4A @480Vac

Max.Output Current

253.2A @380 V, 240.5A @400 V, 200.5A @480Vac

Adjustable Power Factor Range

0.8 leading... 0.8 lagging

alternating current THDi

＜1%

Protection

Anti-islanding Protection

Yes

AC Over current Protection

Yes

DC Reverse-polarity Protection

Yes

PV-array String Fault Monitoring

Yes

DC Surge Arrester

TypeII

AC Surge Arrester

TypeII

DC nsulation Resistance Detection

Yes

Residual Current Monitoring Unit

Yes

Smart String Level Disconnector

Yes

Arc Fault Protection

Yes

Terminal Temperature Detection

Yes

PID Recovery

Yes

PV Ground-Fault Protection

Yes

Communication

Display

LED indicators;  WLAN adaptor + Fusion SolarAPP

RS485

Yes

USB

Yes

Smart Dongle-4G

Smart Dongle–4G/ WLAN (Optional)

Monitoring BUS (MBUS)

Yes (isolation transformer required)

GeneralData

Dimensions (W x H x D)

1,000x 710 x 395 mm

Weight (with mounting plate)

102kg

Operating Temperature Range

-25°C~60°C

Cooling Method

Smart Air Cooling

Max. Operating Altitude

4,000m(13,123ft.)

Relative Humidity

0~100%

DC Connector

Amphenol HH4

AC Connector

Waterproof Connector +OT/DTTerminal

Protection Degree

IP66

Topology

Transformerless

Standard Compliance(more available upon request)

Certificate

EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 61727, IEC 60068, IEC 61683

Grid Connection Standards

VDE-AR-N4105, EN 50549-1, EN 50549-2, RD 661, RD 1699, C10/11
