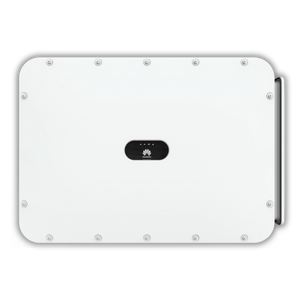

Huawei 36KW Smart PV Controller

Technical Specification

SUN2000-30KTL-M3

SUN2000-36KTL-M3

SUN2000-40KTL-M3

Efficiency

Max. Efficiency

98.7%

European Efficiency

98.4%

Input

Max. Input Voltage 1

1,100 V

Max. Current per MPPT

26 A

Max. Short Circuit Current per MPPT

40 A

Start Voltage

200 V

MPPT Operating Voltage Range 2

200 V ~ 1000 V

Rated Input Voltage

600 V

Number of Inputs

8

Number of MPP Trackers

4

Output

Rated AC Active Power

30,000 W

36,000 W

40,000 W

Max. AC Apparent Power

33,000 VA 3

40,000 VA

44,000 VA

Rated Output Voltage

230Vac/400Vac/ 480 Vac,3W/N+PE

Rated AC Grid Frequency

50 Hz / 60 Hz

Rated Output Current

43.3 A

52.0 A

57.8 A

Max. Output Current

47.9 A

58.0 A

63.8 A

Adjustable Power Factor Range

0.8 LG ... 0.8 LD

Max. Total Harmonic Distortion

< 3%

Protection

Input-side Disconnection Device

Yes

Anti-islanding Protection

Yes

AC Overcurrent Protection

Yes

DC Reverse-polarity Protection

Yes

PV-array String Fault Monitoring

Yes

DC Surge Arrester

Yes

AC Surge Arrester

Yes

DC Insulation Resistance Detection

Yes

Residual Current Monitoring Unit

Yes

Arc Fault Protection

Yes

Ripple Receiver Control

Yes

Integrated PID Recovery 4

Yes

Communication

Display

LED Indicators, Integrated WLAN + FusionSolar APP

RS485

Yes

Smart Dongle

WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)

4G / 3G / 2G via Smart Dongle-4G (Optional)

Monitoring BUS (MBUS)

Yes (Isolation Transformer required)

General Data

Dimensions (W x H x D)

640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)

Weight (with mounting plate)

43 kg (94.8 lb)

Operating Temperature Range

-25 ~ + 60 °C (-13 °F ~ 140 °F)

Cooling Method

Natural Convection

Max. Operating Altitude

4,000 m (13,123 ft.) (Derating above 2000 m)

Relative Humidity

0% RH ~ 100% RH

DC Connector

Staubli MC4

AC Connector

Waterproof Connector + OT/DT Terminal

Protection Degree

IP 66

Topology

Transformerless

NightimePower Consumption

≤ 5.5W

Optimizer Compatibility

DC MBUS Compatible Optimizer

SUN2000-450W-P

Standard Compliance (more available upon request)

Safety

EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683

Grid Connection Standards

IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699,

P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7,

NRS 097-2-1, AS/NZS 4777.2, DEWA
