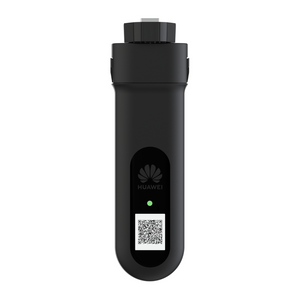

Huawei Smart Dongle-WLAN-FE
Connect Inverters and Data Service
Via WLAN and Fast Ethernet (FE) connection, Smart Dongle supports up to 10 inverters to communicate with the solar management system through hassle-free plug and play.
Once plugged in, the WLAN access point can be used for local deployment to realize intelligent power management and plant maintenance. Both FusionSolar SmartPVMS and the third-party management system can be bound to the inverters.
Being dustproof and waterproof for IP65 protection, Smart Dongle is ready to defy dust and rain after outdoor installation at any moment.
|
Technical Specification |
SDongleA-05(AP+STA) |
General Specification
|
Max. devices supported |
10 |
|
Max. inverters supported |
10 |
|
Connection interface |
USB |
|
Ethernet interface |
10/100M Ethernet |
|
Installation |
Plug-and-play |
|
Indicator |
LED Indicator |
|
Dimensions (W x H x D) |
146 mm x 48 mm x 33 mm (5.1 in. x 1.9 in. x 1.3 in.) |
|
Weight |
90 g (0.2 lb.) |
|
IP rating |
IP65 |
|
Power (typical) |
2.5 W |
|
Working mode |
AP + STA |
|
Security |
Security protocol: WPA/WPA2 Encryption: TKIP/CCMP/AES |
Radio Specification
|
Supported standards & frequencies |
802.11b/g/n (2.412-2.484 GHz) |
Environment
|
Operating temperature range |
–30°C to +65°C (–22°F to +149°F) |
|
Relative humidity range |
5%-95% RH |
|
Storage temperature range |
–40°C to +70°C (–40°F to +158°F) |
|
Max. operating altitude |
4,000 m (13,123 ft.) |
Standards Compliance (More Available Upon Request)
|
Certificate |
SRRC, CE, RCM |
Inverter Compatibility
|
Inverter model |
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 SUN2000-8/10K-LC0 SUN2000-3/4/5/6/8/10KTL-M1 SUN2000-12/15/17/20KTL-M2 SUN2000-12/15/17/20/25K-MB0 SUN2000-12/15/17/20/25KTL-M5 SUN2000-30/36/40/50KTL-M3 SUN2000-100/115KTL-M2 |
2 years
