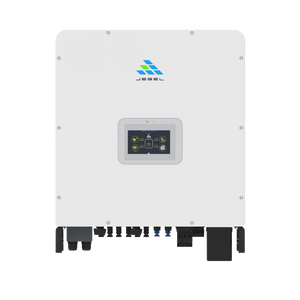

Jebel 20KW Three Phase HV Hybrid Inverter
Jebel JBL-HYB-15-25K-3PH SERIES inverter, ranging from 15-25kw, compatible with a large range of High voltage batteries. Except ups function, it can also support generator, which makes it long-term power supply.
Key Features
-
Equipped with GEN port, compatible with diesel generators, smart loads, and AC coupling.
-
IP66 rated enclosure, designed for both indoor and outdoor deployment in harsh environments
-
Supports setting 9 periods, including three periods each for self-consumption, battery charge, and battery discharge.
-
Supports 100% 3-phase unbalanced output on both ports (BACKUP & GRID).
-
Integrated 0-export function.
-
Peak shaving and valley filling to enhances grid stability.
Technical Specifications
|
Models |
15K |
20K |
25K |
|
Input DC (PV side) |
|||
|
Max. PV access power |
30kW |
40kW |
50kW |
|
Max. PV input power |
24kW |
32kW |
32kW |
|
Max. PV input voltage |
1000V |
||
|
Nominal input voltage |
600 V |
||
|
MPP T working voltage range |
180V-850V |
||
|
Number of independent MPPT/ strings per MPPT
|
2/2 |
||
|
MPPT max. current |
30A/30A |
||
|
Start-up voltage |
200V |
||
|
Output/Input AC (Grid side) |
|||
|
Nominal apparent power |
15Kw |
20kw |
25kw |
|
Max. apparent power |
16.5kVA |
22kVA |
25kVA |
|
Nominal voltage |
380V/400V |
||
|
Nominal frequency |
50Hz/60Hz |
||
|
Rated current |
22.7A/ 21.7A |
30A/29A |
37.8A/ 36.3A |
|
Max. current |
25A |
33A |
38A |
|
Power factor |
-0.8~+0.8 (adjustable) |
||
|
THDi |
<3%(Nominal Output) |
||
|
Grid system pattern |
3L+N+PE |
||
|
Max. AC current from utility grid |
60A |
||
|
Output AC (Back-up) |
|||
|
Nominal output power |
15Kw |
20kw |
25kw |
|
Max. output apparent power |
16.5kVA |
22kVA |
25kVA |
|
Nominal output voltage |
380V/400V |
||
|
Nominal output frequency |
50Hz/60Hz |
||
|
Output THDV |
<3% |
||
|
Automatic switch time |
<10ms |
||
|
Battery |
|||
|
Battery type |
Li-ion |
||
|
Battery voltage range |
150V~750V |
||
|
Max. charging/discharging current |
50A |
||
|
Charging strategy for Li-ion battery |
Self-adaption to BMS |
||
|
Efficiency |
|||
|
Max. MPPT efficiency |
99.9% |
||
|
Europe efficiency |
97.5% |
||
|
Max. battery to load efficiency |
98% |
||
|
Protection |
|||
|
Anti-islanding protection |
Yes |
||
|
Insulation impedance protection |
Yes |
||
|
RCD detection |
Yes |
||
|
PV reverse polarity protection |
Yes |
||
|
Output over voltage protection |
Yes |
||
|
Output over current protection |
Yes |
||
|
General Data |
|||
|
Dimensions(L/W/H)in mm |
403/284/463 |
||
|
Weight |
32Kg |
||
|
Operation temperature range |
-25℃~60 ℃ |
||
|
Heat dissipation mode |
Smart cooling |
||
|
IP Class |
IP 66 |
||
|
Maximum altitude |
4000m |
||
|
Self-Consumption night |
<3W |
||
|
Topology |
Transforerless |
||
|
Features |
|||
|
LCD display |
Yes |
||
|
Communication interface |
WiFi/4G/USB/CAN/RS485 |
||
|
Standards |
EN 62109/EN 62477/EN IEC 61000/CEI 0-21/NTS-631/RD647/UNE 217001/ UNE 217002/VDE 4105/IEC 61727/IEC 62116/IEC 61683/EN 50549/G98/ G99/NRS 097/UTE C 15/VDE V 0126 |
||
5 Years
- single or three-phase:
- three-phase
- Frequency:
- 50
- Voltage:
- 380
- Battery Voltage:
- 150-750
