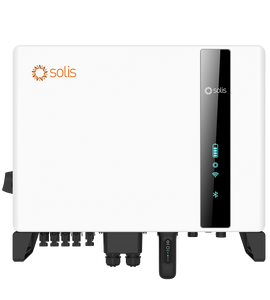

Solis 10KW Three Phase HV Hybrid Inverter

Solis 10KW Three Phase HV Hybrid Inverter

Solis
SKU:
S6-EH3P10K2-H
Availability:
4-6 weeks

Log in for pricing

Weight:
40.00 KGS
Width:
75.00 (cm)
Height:
65.00 (cm)
Depth:
38.00 (cm)
Current Stock:
Minimum Purchase:
1 unit
Description

S6 Solar inverter that can connect solar panels and a high voltage battery. This inverter will capture the solar during the day and provide power to your home loads and charge the battery. At night it will use the battery to satisfy your home loads. This will prevent you from using any power from the grid and save you from ever paying them a cent! Fight back with the new S6 solar hybrid inverter from Solis.

Technical Specifications

Models

5K

6K

8K

10K

Input DC (PV side)

Recommended max. PV array size

10 kW

12 kW

16 kW

20 kW

Max. usable PV input power

8 kW

9.6 kW

12.8 kW

16 kW

Max. input voltage

1000 V

Rated voltage

600 V

Start-up voltage

160 V

MPPT voltage range

200-850 V

Max. input current

16 A / 16 A

Max. short circuit current

24 A / 24 A

MPPT number/Max. input strings number

2/2

Battery

Battery Type

Li-ion

Battery Voltage Range

120-600 V

Max. Charge / Discharge Power

5 kW

6 kW

8 kW

10 kW

Max. Charge / Discharge Current

25 A

50 A

Communication

CAN/RS485

Output AC (Grid side)

Rated output power

5 kW

6 kW

8 kW

10 kW

Max. apparent output power

5 kVA

6 kVA

8 kVA

10 kVA

Rated grid voltage

3/N/PE, 380 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

7.6 A / 7.2 A

9.1 A / 8.7 A

12.2 A / 11.5 A

15.2 A / 14.4 A

Max. output current

7.6 A / 7.2 A

9.1 A / 8.7 A

12.2 A / 11.5 A

15.2 A / 14.4 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Input AC (Grid side)

Max. input power

7.5 kW

9 kW

12 kW

15 kW

Rated input current

11.4 A

13.8 A

18.2 A

22.8 A

Rated input voltage

3/N/PE, 380 V / 400 V

Rated input frequency

50 Hz / 60 Hz

Output AC (Back-up)

Rated Output Power

5 kW

6 kW

8 kW

10 kW

Max. apparent output power

8 kVA, 60 sec

9.6 kVA, 60 sec

12.8 kVA, 60 sec

16 kVA, 60 sec

Back-up switch time

<10 ms

Rated output voltage

3/N/PE, 380 V / 400 V

Rated Frequency

50 Hz / 60 Hz

Rated output current

7.6 A / 7.2 A

9.1 A / 8.7 A

12.2 A / 11.5 A

15.2 A / 14.4 A

THDv (@linear load)

<2%

Efficiency

Max. efficiency

96.5%

97.0%

97.5%

97.9%

EU efficiency

96.8%

97.1%

97.4%

97.5%

BAT charged by PV/AC Max. efficiency

98.4%

98.5%

98.2%

98.3%

BAT discharged to AC Max. efficiency

97.3%

97.3%

97.5%

97.5%

Protection

Anti-islanding protection

Yes

Output over current protection

Yes

Short circuit protection

Yes

Integrated AFCI 2.0

Optional

Integrated DC switch

Yes

DC reverse-polarity protection

Yes

PV over voltage protection

Yes

Battery reverse protection

Yes

General Data

Dimensions (W*H*D)

600*500*210 mm

600*500*230 mm

Weight

27.6 kg

30.2 kg

Topology

Transformerless

Self-consumption (night)

<25 W

Operating ambient temperature range

-25 ~ +60°C

Relative humidity

0-95%

Ingress protection

IP66

Cooling concept

Natural convection

Max. operation altitude

4000 m

Grid connection standard

G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15/VFR:2019, RD 1699/RD 244 / UNE 206006 /

UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

Safety/EMC standard

/EN 62109-1/-2, IEC/EN 61000-6-1/-3

Features

PV connection

MC4 connector

Battery connection

Quick connection plug

AC connection

Quick connection plug

Display

LED + Bluetooth + APP

Communication

CAN, RS485, Optional: Wi-Fi, Cellular, LAN



Warranty
10 years
Additional Information
single or three-phase:
three-phase
Battery Voltage:
120-600 V
Frequency:
50
Voltage:
380
