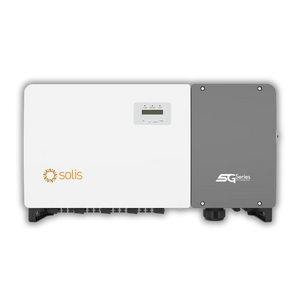

Solis 80KW Three Phase String Inverter (6 MPPT)

DATASHEET

Solis-(80-110)K-5G-PRO

Models

80K

100K

110K

Input DC

Max. input voltage

1100 V

Rated voltage

600 V

Start-up voltage

180 V

MPPT voltage range

160-1000 V

Max. input current

36 A / 32 A / 36 A / 32 A /36 A / 32A

36 A / 32 A / 36 A / 32 A / 36 A / 32 A / 36 A / 32 A

Max. short circuit current

6*50 A

8*50 A

MPPT number/Max. input strings number

6/12

8/16

Output AC

Rated output power

80 kW

100 kW

110 kW

Max. apparent output power

88 kVA

110 kVA

121 kVA

Max. output power

88 kW

110 kW

121 kW

Rated grid voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

121.6 A / 115.5 A

152.0 A / 144.3 A

167.1 A / 158.8 A

Max. output current

133.7 A

167.1 A

183.8 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Efficiency

Max. efficiency

98.5%

EU efficiency

98.0%

Protection

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Output over current protection

Yes

Surge protection

DC Type II / AC Type II

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

Strings monitoring

Yes

I/V Curve scanning

Yes

Integrated AFCI (DC arc-fault circuit protection)

Yes (1)

Integrated DC switch

Yes

General Data

Dimensions (W*H*D)

1183*585*363 mm

Weight

77 kg

93 kg

Topology

Transformerless

Self-consumption (night)

<2 W

Operating ambient temperature range

-30 ~ +60°C

Relative humidity

0-100%

Ingress protection

IP66

Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude

4000 m

Grid connection standard

G99, IEC61727, EN50549-1/2. VDE4110

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4

Features

DC connection

MC4 connector

AC connection

OT terminal (max. 240 mm²)

Display

LCD

Communication

RS485, Optional: Wi-Fi, GPRS, PLC
