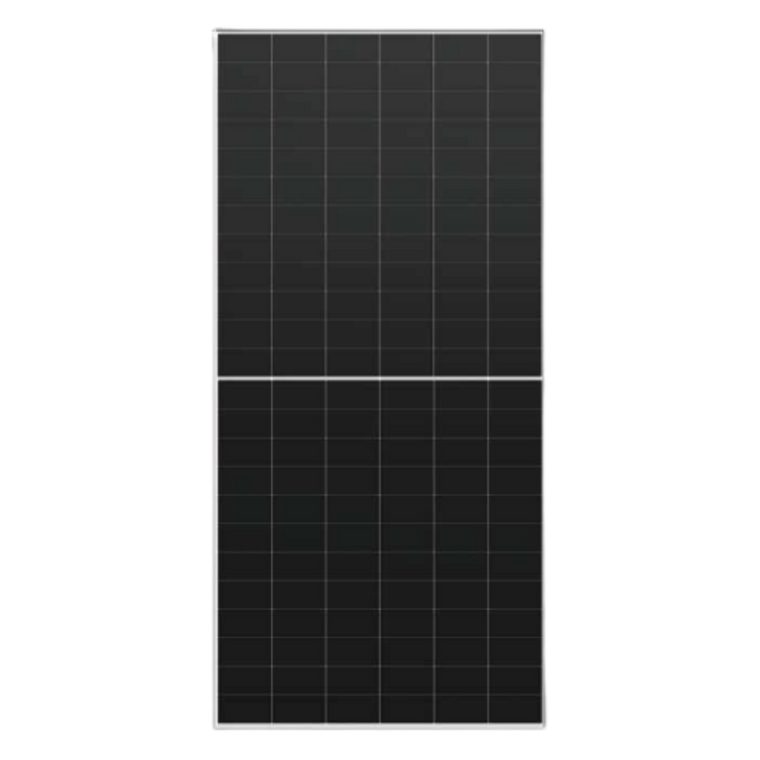

Longi 650 Watt Hi-Mo X10 Scientist Bifacial Solar Panel
The LONGi Hi-MO X10 is a premium product built on the revolutionary HPBC 2.0 cell technology. It leads in terms of power generation performance, reliability, and customer benefits, while also meeting the needs of distributed market segments. It is divided into four series: Explorer, Scientist, Guardian and Artist, making it the preferred high-value product for the global distributed market.
|
Electrical Characteristics STC : AM1.5 1000W/m2 25℃ NOCT : AM1.5 800W/m2 20℃ 1m/s Test uncertainty for Pmax: ±3% |
||||||||||||
|
Module Type |
LR7-72HVD-640M |
LR7-72HVD-645M |
LR7-72HVD-650M |
LR7-72HVD-655M |
LR7-72HVD-660M |
LR7-72HVD-665M |
||||||
|
Testing Condition |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
|
Maximum Power (Pmax/W) |
640 |
487 |
645 |
491 |
650 |
495 |
655 |
499 |
660 |
502 |
665 |
506 |
|
Open Circuit Voltage (Voc/V) |
54.02 |
51.34 |
54.12 |
51.43 |
54.22 |
51.53 |
54.32 |
51.62 |
54.42 |
51.72 |
54.52 |
51.81 |
|
Short Circuit Current (Isc/A) |
14.98 |
12.03 |
15.06 |
12.10 |
15.14 |
12.16 |
15.22 |
12.22 |
15.30 |
12.29 |
15.35 |
12.33 |
|
Voltage at Maximum Power (Vmp/V) |
44.67 |
42.45 |
44.77 |
42.55 |
44.87 |
42.64 |
44.97 |
42.74 |
45.07 |
42.83 |
45.17 |
42.93 |
|
Current at Maximum Power (Imp/A) |
14.33 |
11.49 |
14.41 |
11.55 |
14.49 |
11.61 |
14.57 |
11.68 |
14.65 |
11.75 |
14.72 |
11.80 |
|
Module Efficiency(%) |
23.7 |
23.9 |
24.1 |
24.2 |
24.4 |
24.6 |
||||||
|
Electrical characteristics with different rear side power gain (Taking 665W as the baseline) |
|||||
|
Pmax /W |
Voc/V |
Isc /A |
Vmp/V |
Imp /A |
Pmax gain |
|
688 |
54.32 |
15.98 |
44.97 |
15.30 |
5% |
|
721 |
54.32 |
16.74 |
44.97 |
16.03 |
10% |
|
755 |
54.32 |
17.50 |
45.07 |
16.76 |
15% |
|
788 |
54.32 |
18.26 |
45.07 |
17.48 |
20% |
|
821 |
54.32 |
19.03 |
45.07 |
18.21 |
25% |
|
Operating Parameters |
|
|
Operational Temperature |
-40℃ ~ +85℃ |
|
Power Output Tolerance |
0 ~ 3% |
|
Maximum System Voltage |
DC1500V (IEC/UL) |
|
Maximum Series Fuse Rating |
30A |
|
Nominal Operating Cell Temperature |
45±2℃ |
|
Bifaciality |
70±5% |
|
Protection Class |
Class II |
|
Fire Rating |
UL type 29 IEC Class C |
|
Mechanical Loading |
|
|
Front Side Maximum Static Loading |
5400Pa |
|
Back Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
|
Temperature Ratings (STC) |
|
|
Temperature Coefficient of Isc |
+0.050%/℃ |
|
Temperature Coefficient of Voc |
-0.200%/℃ |
|
Temperature Coefficient of Pmax |
-0.260%/℃ |
|
Mechanical Parameters |
|
|
Cell Orientation |
144 (6×24) |
|
Junction Box |
IP68, three diodes |
|
Output Cable |
4mm2, +400, -200mm/±1400mm |
|
Glass |
Dual glass, 2.0+2.0mm semi-tempered glass |
|
Frame |
Anodized aluminum alloy frame |
|
Weight |
33.5kg |
|
Dimensions |
2382×1134×30mm |
|
Packaging |
36pcs per pallet / 144pcs per 20’GP / 720pcs per 40’HC |
15-year Warranty for Materials and Processing
30-year Warranty for Extra Linear Power Output
- Mono or Bi-Facial:
- Bi-Facial
