Dyness Powerbox G2 LV Battery

Dyness Powerbox G2 LV Battery

Dyness
SKU:
Powerbox G2
Availability:
4-6 weeks

Log in for pricing

Weight:
109.00 KGS
Width:
86.00 (cm)
Height:
79.00 (cm)
Depth:
31.50 (cm)
Current Stock:

Dyness Powerbox G2 Low Voltage Home Energy Storage Battery

DOWNLOAD DATASHEET

Leading Features:

• Lighter and Smaller 15% weight reduction, 30% volume reduction
• Unlimited Cycles / 10 Years warranty
• Build in Active fire protection system

• -20 degrees low temperature charging function

   Battery low temperature heating function (optional)

Description

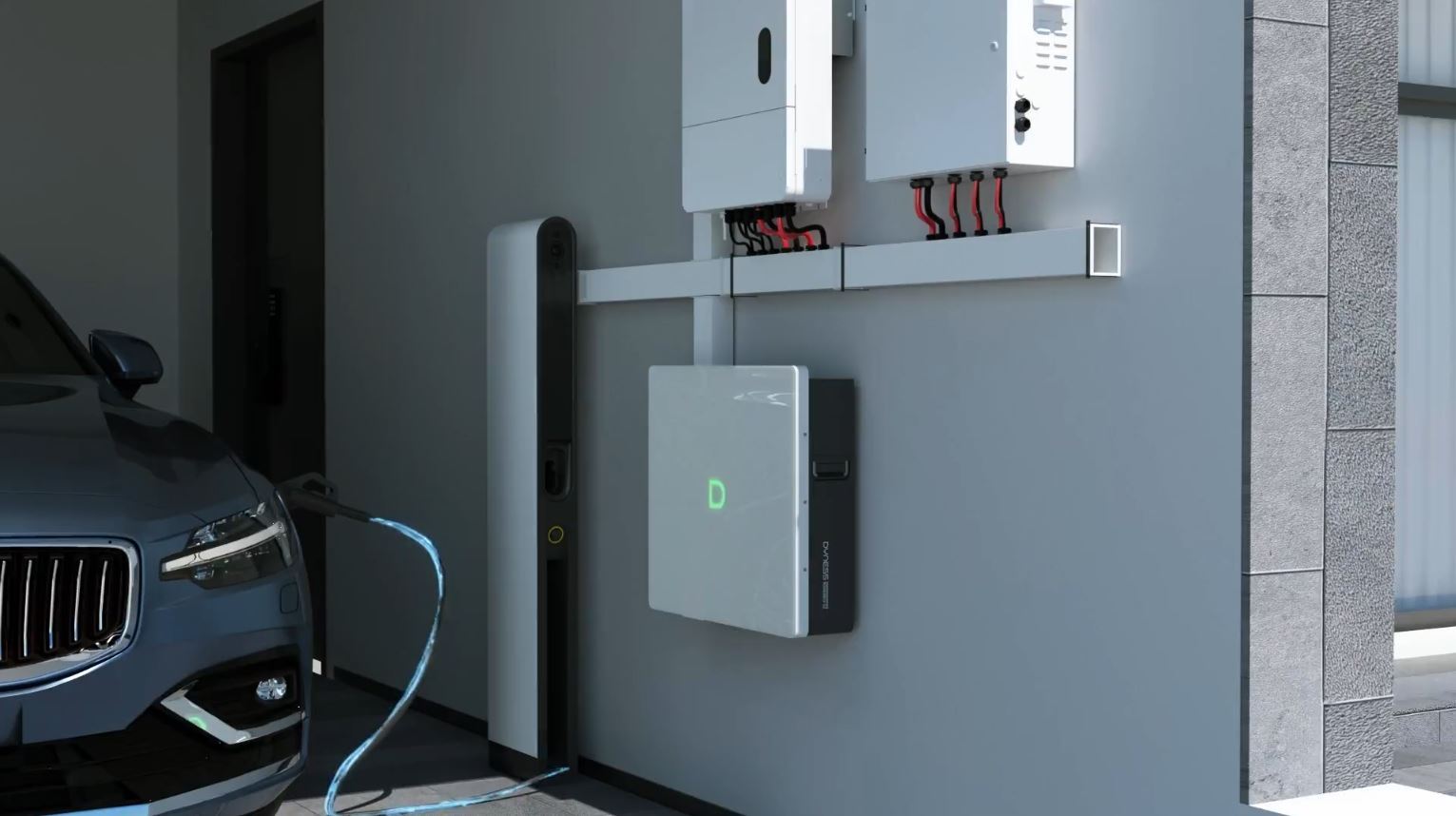

The Powerbox G2 is a high-capacity, deep-cycle LFP battery designed for enhanced safety, extended lifespan, and a user-friendly experience. Its IP65 rating allows for flexible installation both indoors and outdoors, offering wall-mounted and floor-standing options. With a capacity of up to 10 kWh per unit and the ability to connect up to 12 units in parallel, it provides reliable performance to meet household electricity needs. Power your life with the superior energy storage of the Powerbox G2.

Technical Specifications

Battery Type

Nominal Battery Energy

LiFePO4

Usable Energy

10.24kWh

Operating Voltage

9.728kWh

Nominal Voltage

44.8-57.6V

Nominal Capacity

51.2V

Nominal Charge or Discharge Power

200Ah

Max Discharge Power

5.12kW

Recomended Charge & Discharge C Rate

10.24kW

Max Discharge C Rate

0.5C

Recommended Charge/Discharge Current

100A

Max Discharge Current

200A

Peak discharge Current

300A _2mins, 25°C)

Recommended Depth of Discharge _DOD_

95%

Net Weight

95kg without glass front panel; 98Kg with glass front panel

Dimension[W*D*H]

710*165*640mm

Charging Temp. Range

0～55℃（with heating function）

Discharging Temp. Range

0~55℃ / -20~55℃

Communication

CAN/RS485

Cycle Life [1]

Unlimited cycles / 10 Years

Protection Level

IP65

Expansion

Up to 40 units in parallel

Color

White

WIFI Module

Built-in WIFI module; APP, OTA function

Ba_ery low temperature heating function

Optional

Active fire protection system

Built-in aerosol fire extinguisher

Certification & Safety Standard

UN38.3、IEC62619、IEC62040、CEC、CE RED

Compatible Inverters

SMA/Victron/lngeteam/Delios/Goodwe/Solis



Warranty
10 years
Additional Information
Voltage:
51.2
Ampere-hour:
100
