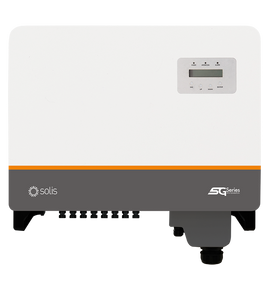

Solis 40KW Three Phase HV Hybrid Inverter

Solis
SKU:
S6-EH3P40K-H
Availability:
4-6 weeks

Log in for pricing

Weight:
83.00 KGS
Width:
68.00 (cm)
Height:
103.00 (cm)
Depth:
44.00 (cm)
Current Stock:
Minimum Purchase:
1 unit

Introducing the S6-EH3P(29.9-50)K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(29.9-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.



Technical Specifications

Models

29.9K

30K

40K

50K

Input DC (PV side)

Recommended max. PV array size

59.8 kW

60 kW

80 kW

100 kW

Max. usable PV input power

59.8 kW

60 kW

80 kW

100 kW

Max. input voltage

1000 V

Rated voltage

600 V

Start-up voltage

160 V

MPPT voltage range

150-850 V

Max. input current

3*40 A

4*40 A

Max. short circuit current

3*60 A

4*60 A

MPPT number/Max. input strings number

3/6

4/8

Battery

Battery Type

Li-ion

Battery Voltage Range

150-800 V

Max. Charge / Discharge Power

32.1 kW

33 kW

44 kW

55 kW

Max. Charge / Discharge Current

70 A*2 (1)

No. of battery inputs

2

Max. charge / discharge power of each input

32.1 kW

33 kW

44 kW

55 kW

Communication

CAN/RS485

Output AC (Grid side)

Rated output power

29.9 kW

30 kW

40 kW

50 kW

Max. apparent output power

29.9 kVA

30 kVA

40 kVA

50 kVA

Rated grid voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

45.4 A / 43.2 A

45.6 A / 43.3 A

60.8 A / 57.7 A

76 A / 72.2 A

Max. output current

45.4 A / 43.2 A

45.6 A / 43.3 A

60.8 A / 57.7 A

76 A / 72.2 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Input AC (Grid side)

Max. AC passthrough current

90.8 A / 86.4 A

91.2 A / 86.6 A

121.6 A / 115.4 A

152 A / 144.4 A

Rated input voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated input frequency

50 Hz / 60 Hz

Input Generator

Max. input power

29.9 kW

30 kW

40 kW

50 kW

Rated input current

45.4 A / 43.2 A

45.6 A / 43.3 A

60.8 A / 57.7 A

76 A / 72.2 A

Rated input voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated input frequency

50 Hz / 60 Hz

Output AC (Back-up)

Rated Output Power

29.9 kW

30 kW

40 kW

50 kW

Max. apparent output power

1.6 times of rated power, 2 s

Back-up switch time

<10 ms

Rated output voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated Frequency

50 Hz / 60 Hz

Rated output current

45.4 A / 43.2 A

45.6 A / 43.3 A

60.8 A / 57.7 A

76 A / 72.2 A

THDv (@linear load)

<2%

Efficiency

Max. efficiency

97.8%

EU efficiency

97.4%

BAT charged by PV/AC Max. efficiency

97.5%

BAT discharged to AC Max. efficiency

97.5%

Protection

Anti-islanding protection

Yes

Output over current protection

Yes

Short circuit protection

Yes

Integrated DC switch

Yes

DC reverse-polarity protection

Yes

Surge protection

DC Type II / AC Type II

Integrated AFCI 2.0

Optional

General Data

Dimensions (W*H*D)

530*880*290 mm

Weight

73 kg

Topology

Transformerless

Self-consumption (night)

<35 W

Operating ambient temperature range

-25 ~ +60°C

Relative humidity

0-95%

Ingress protection

IP66

Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude

4000 m

Grid connection standard

G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126 / UTE C 15/VFR:2019,

NTS 631/RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2,

IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA No 140, DE 21 DE MARCO DE 2022

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

Features

PV connection

MC4 Quick connection plug

Battery connection

Terminal connector

AC connection

Terminal Block

Display

LCD + Bluetooth + APP

Communication

CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN



10 years
single or three-phase:
three-phase
Frequency:
50
Voltage:
380
Battery Voltage:
150-850
