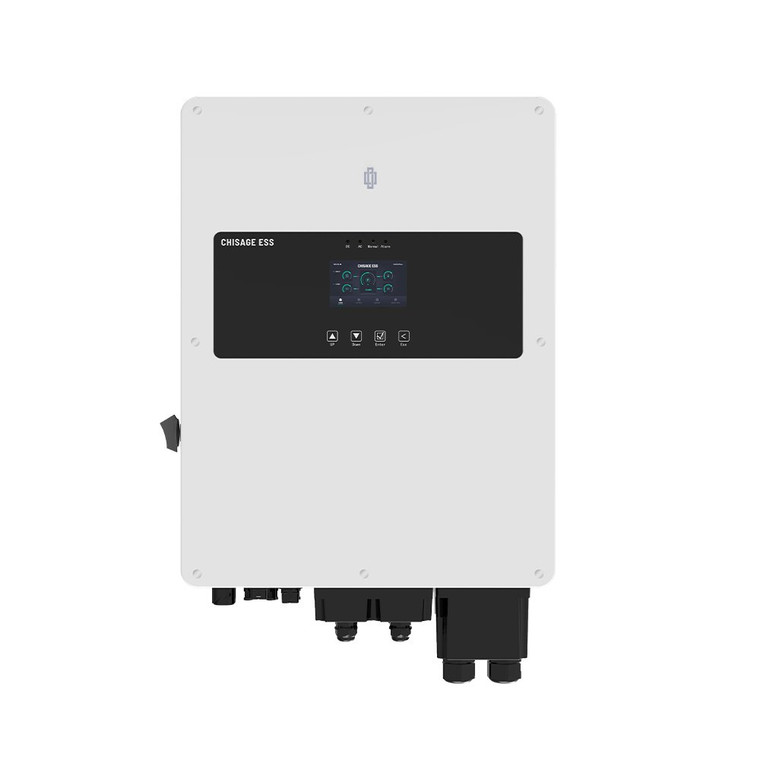

Chisag ESS 8kW Single Phase LV Hybrid Inverter

Chisag ESS 8kW Single Phase LV Hybrid Inverter

Chisage ESS
SKU:
JUP-8G1-LE

Log in for pricing

Weight:
38.00 KGS
Width:
55.00 (cm)
Height:
80.00 (cm)
Depth:
35.00 (cm)
Current Stock:
Description

DOWNLOAD DATASHEET

Key Features

  • 3-10kW Rated AC Output Power
  • ARC fault detection optional
  • Support storing energy from diesel generator
  • Support on/off grid mode switch, EPS output
  • Independent AC input port for diesel generator
  • Colorful 5-inch touch LCD, IP65 protection degree
  • Up to 20 PCS inverters parallel for off-grid operation
  • Support different power inverters parallel connection
  • Support battery charging/discharging according to the time setting
  •



Technical Specifications

Model

Jup-5G1-LE

Jup-5G2-LE

Jup-6G1-LE

Jup-6G2-LE

Jup-8G1-LE

Jup-8G2-LE

Jup-10G1-LE

Jup-10G2-LE
Battery Input Data
Battery Type Lead-acid or Li-ion
Battery Voltage Range (V) 40-60
Max. Charge Current (A) 120 140 190 210
Max. Discharge Current (A) 120 140 190 210
Charging Curve 3 Stages/Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-Adaption to BMS
PV String Input Data
Max. DC Input Power (W) 7,500 9,000 12,000 15,000
Max.PV Input Voltage(V) 500
PV Input Voltage (V) 370(125~500)
MPPT Range (V) 125~425
Start-up Voltage (V) 120
PV Input Current (A) 26+26
Max. PV ISC (A) 34+34
No. of MPPT Trackers 2
No. of String Per MPPT Tracker 2/2 2/2 2/2 2/2
AC Output Data
Rated AC Output Power and UPS Power (W) 5,000 6,000 8,000 10,000
Max. AC Output Power (W) 6,000 7,200 9,600 12,000
Peak Power(off grid) 2 times of rated power, 10s
AC Output Rated Current (A) 21.73 26.08 34.78 43.47
Max. AC Current (A) 26.08 31.3 41.73 52.17
Max. Continuous AC Passthrough (A) 50 50 50 60
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz/230Vac(single phase)
Grid Type single phase
Current Harmonic Distortion THD<3%(Linear load <1.5%)
Efficiency
Max. Efficiency 97.90%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection
PV ARC Fault Detection Optional
Output Over Voltage Protection DC Type II/AC Type III
Certification and Standards
EMC/Safety Regulation IEC/EN 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range(℃) -45~60,＞45 Derating
Cooling Smart cooling
Noise(dB) ≤45
Communication with BMS CAN, RS485
Weight (kg) 34/35
Dimensions (mm) G1: 514W×749H×291D/G2: 514W×665H×292D
Protection Degree IP65
Installation Style Wall-mounted
Warranty
5 Years
Additional Information
single or three-phase:
single-phase
Frequency:
50
Voltage:
220
Battery Voltage:
48
