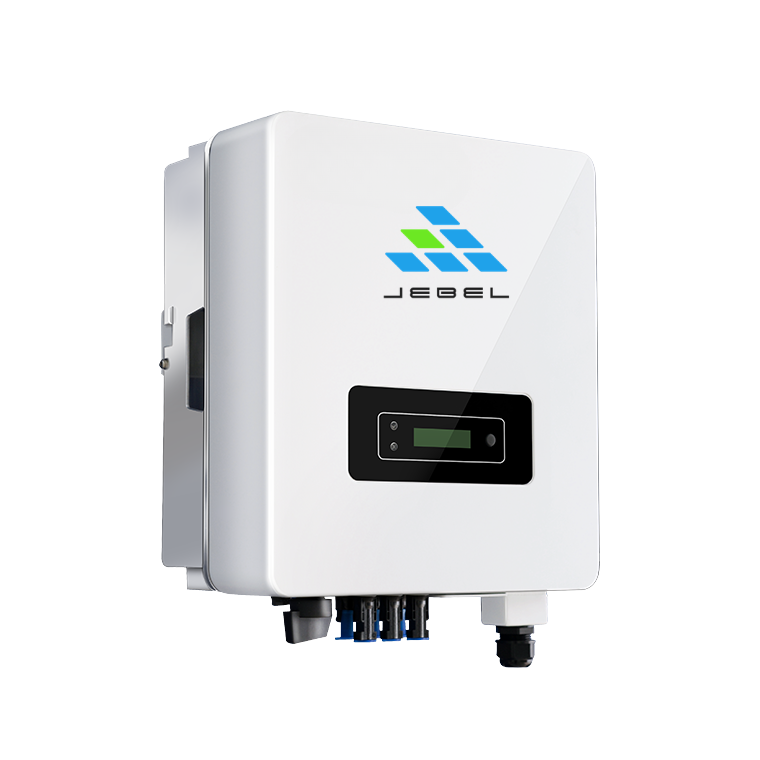

Jebel 10KW Single Phase String Inverter

Jebel 10KW Single Phase String Inverter

Jebel
SKU:
JBL-ON-10K-1P
Availability:
4-6 weeks

Log in for pricing

Weight:
20.00 KGS
Width:
38.00 (cm)
Height:
45.00 (cm)
Depth:
24.00 (cm)
Current Stock:
Minimum Purchase:
10 units
Description

Download Datasheet

Jebel 10KW single phase on grid fully meet the market demand for high power single phase household models with innovative 3-MPPT design. It is suitable for larger roofs with more complex orientations.

Features:

  • OLED display, touch button design, simple operation
  • Maximum efficiency 97.6%, more power generation
  • 20A string current, suitable for high power modules
  • 130% DC configuration, 110% AC overload output
  • IP65 protection level, built-in SPD protection device
  • Intelligent remote monitoring
  • Support anti-backflow function
  • 60V ultra-low operating voltage
  • Support AFCI function

Datasheet:

Model

10K

Input DC

Max. PV access power

20kW

Max. PV input power

13kW

Max. PV input voltage

550V

Operation voltage range

 80V-540V

Number of independent
MPPT/ strings per MPPT

 3/1

MPPT max. current

20A/20A/20A
AC Output Data

Rated output power

10kW

Max. output power

10kW

Rated output voltage

230V/ 180V-280V

Rated output frequency

50Hz/60Hz

Rated output current

43.5A

Max. output current

44A

Power factor

-0.8~+0.8(adjustable)

THDi

<3%(Nominal Output)

Grid system pattern

L+N+PE
Efficiency

Max. efficiency

97.6%

Europe efficiency

96.8%
Protection

Input DC switch

Yes

Input over current protection

Yes

DC reverse polarity protection

Yes

Output over voltage protection

 Yes

Output over current protection

 Yes

Anti islanding protection

Yes
Insulation impedance protection

Yes

RCD detection

Yes

General Data

Dimensions (L/W/H) in mm

358/180/400

Weight

16kg

Noise

<45dB

Operation temperature range

 -25℃~+60℃

Heat dissipation mode

Smart cooling

IP Class

IP65

Maximum altitude

4000m

Self-Consumption night

<1w

Topology

Transformerless

Features

LCD display

Yes

Communication interface

WIFI/4G/GPRS/RS485(optional)

Warranty

5 years (standard)

Standards

PORTARI A INMETRO Nº 140, DE 21 DE MARÇO, ABNT NBR 16150, IEC 62116,
IEC 62109, IEC 62891, CISPR 11, AMD, IEC 61000, IEC 62920





Warranty
5 Years
Additional Information
single or three-phase:
single-phase
Frequency:
50
Voltage:
220
