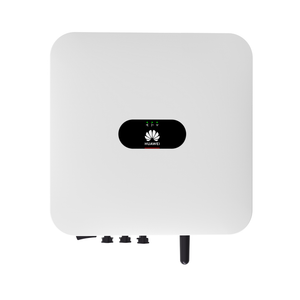

Huawei 3.68KW Smart Energy Controller

Huawei 3.68KW Smart Energy Controller

Huawei
SKU:
SUN2000-3.68KTL-L1
Availability:
4-6 weeks

Contact us for pricing

Log in for pricing

Weight:
23.00 KGS
Width:
64.00 (cm)
Height:
61.00 (cm)
Depth:
28.00 (cm)
Current Stock:
Description

Download Datasheet

DOWNLOAD DATASHEET

DOWNLOAD MANUAL

The HUAWEI SUN2000-2KTL-6KTL-L1 is a battery-ready string inverter rated from 2 kW up to 6kW, ideal for integration with the LUNA Smart String Energy Storage System, SmartGuard and EMMA, Huawei's energy management assistant. This single-phase hybrid inverter offers homeowners maximum flexibility and control over their energy management, from generation to storage and consumption. Combined with an energy storage system (ESS) and Huawei's SmartGuard, it ensures uninterrupted power supply during power outages and emergencies. In a single-phase backup solution, one inverter can control up to two ESS towers, with the storage capacity depending on the selected LUNA battery model.

Technical Specifications

Model

SUN2000

-2KTL-L1

SUN2000

-3KTL-L1

SUN2000

-3.68KTL-L1

SUN2000

-4KTL-L1

SUN2000

-4.6KTL-L1

SUN2000

-5KTL-L1

SUN2000

-6KTL-L1

Efficiency

Max. efficiency

98.2%

98.3%

98.4%

98.4%

98.4%

98.4%

98.4%

European weighted efficiency

96.7%

97.3%

97.3%

97.5%

97.7%

97.8%

97.8%

Input (PV)

Recommended max. PV power 1

3,000 Wp

4,500 Wp

5,520 Wp

6,000 Wp

6,900 Wp

7,500 Wp

9,000 Wp

Max. input voltage

600 V

Startup voltage

100 V

MPPT operating voltage range

90 ~ 560 V

Rated input voltage

360 V

Max. input current per MPPT

12.5 A

Max. short-circuit current

18 A

Number of MPP trackers

2

Max. inputs per MPP tracker

1

Input (DC Battery)

Compatible battery

LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 1

Operating voltage range

350 ~ 560 Vdc

Max. operating current

15 A

Max. charge power

5,000 W

Max. discharge power

2,200 W

3,300 W

3,680 W

4,400 W

4,600 W

5,000 W

5,000 W

Output (On Grid)

Grid connection

Single-phase

Rated output power

2,000 W

3,000 W

3,680 W

4,000 W

4,600 W

5,000 W

6,000 W

Max. apparent power

2,200 VA

3,300 W

3,680 W

4,400 VA

5,000 VA

5,500 W

6,000 VA

Rated output voltage

220 Vac / 230 Vac / 240 Vac

Rated AC grid frequency

50 Hz/60 Hz

Max. output current

10 A

15 A

16 A

20 A

23 A

25 A

27.3 A

Adjustable power factor

0.8 leading ... 0.8 lagging

Max. total harmonic distortion

≤ 3%

Backup power output

Yes (via Backup Box - B0, SmartGuard-63A-S0)

Protection Feature

Anti-islanding protection

Yes

DC reverse polarity protection

Yes

Insulation monitoring

Yes

DC surge protection

Yes, compatible with TYPE II protection class according to EN/IEC 61643-11

AC surge protection

Yes, compatible with TYPE II protection class according to EN/IEC 61643-11

Residual current monitoring

Yes

AC overcurrent protection

Yes

AC short-circuit protection

Yes

AC overvoltage protection

Yes

Over-heat protection

Yes

Arc fault protection

Yes

Battery charging from grid

Yes

General Specification

Operating temperature range

–25°C to +60°C (Derating above 45°C @ Rated output power)

Relative operating humidity

0%-100% RH

Operating altitude

0-4,000 m (Derating above 2,000 m)

Cooling

Natural convection

Display

LED indicators; integrated WLAN + FusionSolar app

Communication

RS485, WLAN via inverter built-in WLAN module, Ethernet via Smart Dongle-WLAN-FE (Optional); 4G/3G/2G via Smart Dongle-4G (Optional)

Weight (incl. mounting brackets)

12.0 kg (26.5 lb)

Dimensions (incl. mounting brackets)

365 mm x 375 mm x 156 mm

IP rating

IP65

Nighttime power

< 2.5 W

Optimizer Compatibility

DC MBUS compatible optimizer

SUN2000-450W-P2, SUN2000-600W-P

Standards Compliance (More Available Upon Request)

Safety

EN/IEC 62109-1, EN/IEC 62109-2

Grid connection standards

G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116



Warranty
10 years
Additional Information
single or three-phase:
single-phase
Frequency:
50
Voltage:
220
